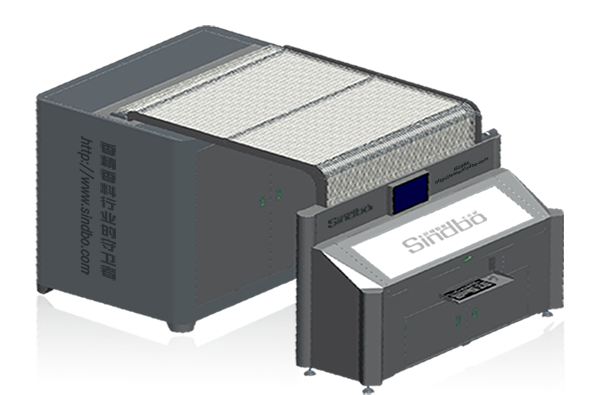

The fully automatic intelligent formula machine is a product developed according to industry process requirements, featuring high precision and good confidentiality. It is currently a leading high-tech product in China.



Purpose：	Laboratory	Power：	2 (kw) and below
Material：	304 stainless steel	Capacity：	1001－5000（mm）
Brand：	Sindbo	Customized ：	Yes
Power：	1-1.5KW	Volume：	0.5 - 500g
Model：	SID-198LAB	Media Size：	2200*3200*2100 mm
Package：	Sealed wooden create	Output：	100x500g / 20 hour



Operation process of the work server:

    1. The system automatically calculates the remaining amount of raw materials through the recording work server after adding raw materials;

    2. By adding a configuration recipe through the server, the system automatically generates a QR code for equipment processing. The equipment automatically processes after scanning the QR code;

    3. The operator attaches the QR code to the bottom of the feeding cup, and the equipment uses a robotic arm to grip the cup and recognize the QR code for formula feeding;

    4. The equipment displays the working status of material feeding in real time, as well as the material feeding workflow in real time;

    5. After the addition of materials is completed, perform actual data statistics and view the addition quantity for each formula on the work server;

    6. Some materials need to be manually added, and the data for manual addition can be entered on the work server;





The biggest feature of this machine is:

    1. The raw material formula can be effectively kept confidential, and the core technology is not easily leaked.

    2. It can achieve remote network control, truly realizing an unmanned workshop operation and management mode, and avoiding the harm to human body caused by traditional processes.

    3. The precision of raw material proportioning is high, reaching up to 0.01 grams.

    4. It can avoid the reproducibility of the formula.

    5. One person can operate multiple machines, saving human resources.

Before working on the recipe, the following details need to be checked:

    1. After the machine is turned on or before processing a new batch of formulas, it needs to be reset before processing can begin;

    2. Whether the nitrogen pressure value in the raw material bottle meets the requirements. There are 8 types of nitrogen pressures, and the actual pressure installed and adjusted by the worker shall prevail;

    3. Check whether the air pressure value of the equipment meets the requirements (0.45MPa-0.65MPa);

    4. Check if the QR code is pasted in the correct position;

    5. Whether the automatic processing product quantity is set;

The details of equipment operation include:

    1. Check whether the remaining amount of raw materials meets the requirements of this formula;

    2. Check whether the nitrogen pressure value in the raw material bottle meets the requirements (0.05MPa-0.35MPa);

    3. Recognize QR code to read information and automatically determine whether it meets the processing requirements;

    4. Read processing data in real-time and provide feedback on the data;

    5. Monitor in real-time for any abnormalities, and observe the alarm display and data;



Installation, debugging, and construction methods:

The Sindbo intelligent transportation formula and fragrance mixing equipment will be delivered to the factory for installation and debugging. After the debugging, the after-sales service personnel will provide operation training to the operators and explain the precautions!
